EFFICIENCY AT YOUR FINGERTIPS
The RYNO is a revolutionary tool that allows maintenance personnel to safely and easily remove sealants, elastomeric coatings, rain erosion boots, and polyurethane protective tape without damage to metallic or composite surfaces.
The RYNO's patented technology for coating removal is the first in adapting advanced tooling with existing equipment commonly found within aerospace maintenance facilities. The RYNO is capable of interfacing an advanced designed polymer scraper with a metallic mandrel adaptable to common pneumatic impact “rivet” guns. This eliminates the need for customers to invest in proprietary power tooling and their associated repair and maintenance costs.

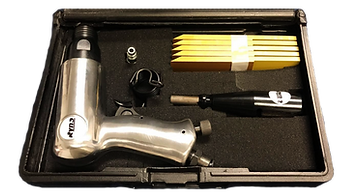

RY-200SK | FULL KIT:
INCLUDES THE FOLLOWING:
Part Number:
RY-200SK
RY-200S
RBTOB-2
RBTOB-1
RBTOB-D1
RBTOB-.50
RBTOB-.25
National Stock Number:
5130-01-693-5094
5130-01-693-4482
5130-01-693-4483
5130-01-693-5095
5130-01-693-4484
5130-01-693-5103
5130-01-693-5100

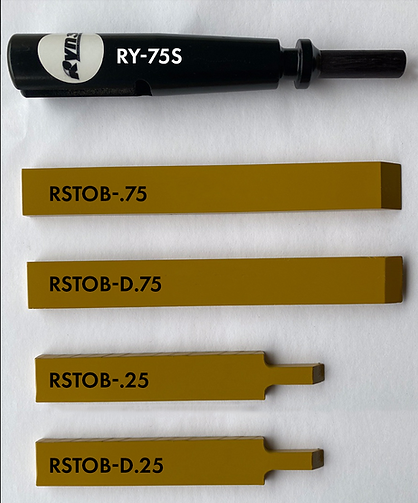

ADD-ON PARTS:
Part Number:
RY-75S
RSTOB-.75
RSTOB-D.75
RSTOB-.25
RSTOB-D.25
National Stock Number:
5130-01-693-5096
5130-01-693-4486
5130-01-693-4872
5130-01-693-4485
5130-01-693-4871
PROVIDING A SIGNIFICANTLY BETTER RESULT
Traditionally, hazardous chemicals are used to chemically strip off the protective boot and subsequent adhesive layers.
However, this process takes over 8 hours to complete.
1. SAVES TIME
The RYNO tool required 2-3hrs to remove the boot, 6 hours less than the conventional method.
2. SAVES LABOR
The RYNO resulted in a 75% labor savings in removal over traditional methods (hand scraping or sanding).
3. SAVES RISK
The RYNO removes the risk of chemicals damaging the composite substrate.
Additionally, no hazardous waste was generated (chemicals, rinse water, rags, etc.), making the boot removal process safer by eliminating hazardous chemicals and exposure.
ALL OF THE WAYS TO USE THE RYNO TOOL
Replace traditional methods of scraping and chemicals
The RYNO (using a phenolic blade) was used to remove the nose radome boot on a P-8A aircraft. Traditionally, hazardous chemical (Toluene) are used to chemically strip off the protective boot and subsequent adhesive layers. However, this process takes over 8hrs to complete. The RYNO tool required only 2-3hrs to remove the boot, a savings of 6 man hours. Additionally, no hazardous waste was generated (chemicals, rinse water, rags, etc.).
Remove aged sealant build-up
The RYNO tool with a torlon blade was used to remove a large build-up of aged polysulfide sealant around a F/A-18 windscreen. Use of the tool resulted in 3-5x's the time savings over traditional sealant removal.
Remove coatings
The RYNO tool removed the following coatings from both aluminum (7075 Aluminum Sheet) and carbon fiber/epoxy solid laminate (BMS 8-212 TY 4, CL 2, STYLE 3K-70-PW)
AMS 3276 (AC 350 B-2)
MIL-PRF-81733 (PPG 1436G TY III-1, Cl 1, Grade A)
MMS-443 (PPG PR-2460)
THE RESULTS ARE IN
The RYNO has been successfully demonstrated across multiple naval aviation maintenance facilities and proven effective for the removal of aerospace sealants, elastomeric coatings, and polyurethane protective tapes. As a result of these successful demonstrations, national stock numbers (NSN) have been established by GSA for federal procurement of the RYNO tool, adapter, and advanced polymeric cutting blades. The final transition is in planning to include the RYNO as a new tool for naval aviation's corrosion control program through a future update of the NA 01-1A-509 general series manual.
The RYNO is approved by the FRCSE (Fleet Readiness Center South East) for repairing and removing polyurethane rain erosion boots from Navy P-8A nose radomes.
ABOUT RYBECK SERVICES
SUPPORTING MILITARY & COMMERCIAL NEEDS
Rybeck Services was created to provide innovative solutions of DoD maintenance needs to directly improve mission readiness, operator safety and materials performance. With over thirty years of professional DoD maintenance and engineering experience, Rybeck Services development team can perform detailed assessments of maintenance-related readiness issues, formulate innovative solutions, and manufacture products for demonstration to validate maintenance improvement. With our agile support team, detailed products are developed to specifically address DoD needs using an approach that can be uniquely tailored for individual service units. Please contact us with your specific needs or questions.
GET IN TOUCH
For product information, pricing, and ordering, call or use the contact form below.
Tel: 904-439-1265 | Fax: 904-797-2423 | Email: TheRyno@RyBeckServices.com
St. Augustine, Florida
